How to attach and remove a Van Raam Slim battery?

Learn in this video with instruction article how you can easily attach a Van Raam Slim battery to a special bike and also remove it again. Also read some handy tips on how to see if the battery fits well on your bike.



Video: Attaching and detaching the Van Raam Slim battery

How to attach and remove a Van Raam Slim battery?

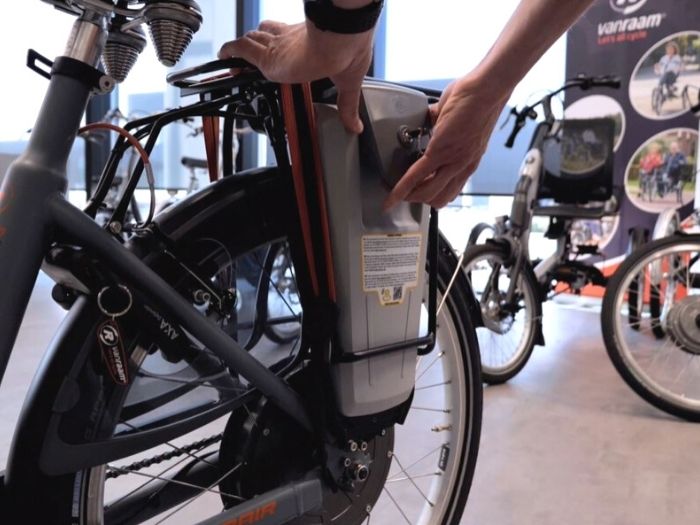

How to attach a Van Raam Slim battery?

In order to attach the Slim battery to a Van Raam bicycle, please follow the steps below:

  1. How to attach a Van Raam Slim battery?
  2. In order to attach the Slim battery to a Van Raam bicycle, please follow the steps below:
  3. Slide the quick binders to the side so that there is more space to place the battery.
  4. Take the key of the battery and turn it halfway.
  5. This will open the lever by which you can hold the battery.
  6. Place the battery behind the lower cross bar of the device, making sure that the bottom side is well seated.
  7. Then you will be able to click the upper side into place. Release the lever and turn the key again.

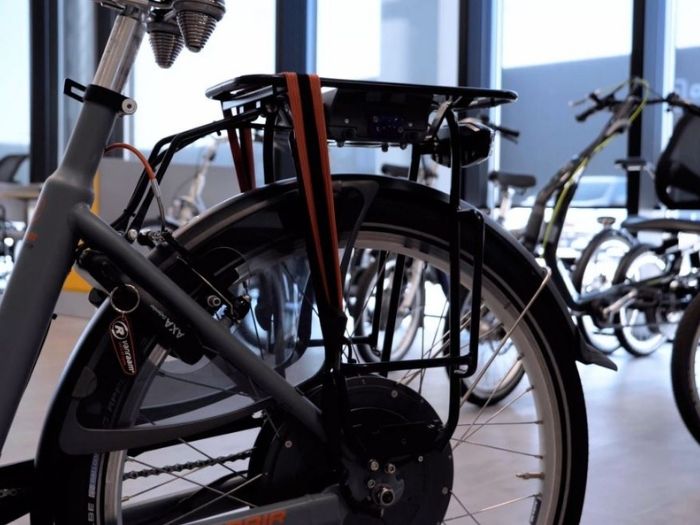

How do you remove a Van Raam Slim battery from the bicycle?

How do you remove a Van Raam Slim battery from the bicycle?

After you have switched off the bike's display, you can remove the battery from the bike. Follow the steps below to do this:

  1. Again, slide the quick binders to the side so that there is more room to remove the battery.
  2. ​Take the key of the battery and turn it halfway.
  3. Now lift the lever up.
  4. Now hold the battery firmly with both hands and remove it from the holder towards the front.

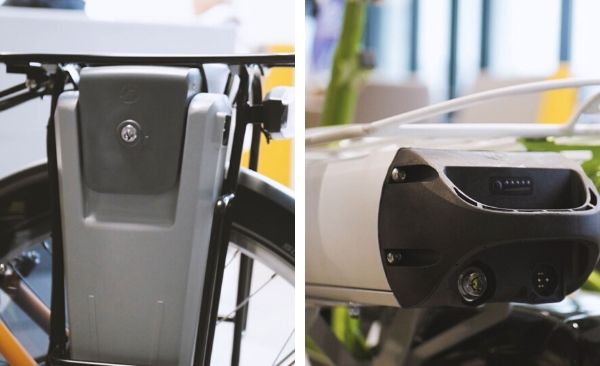

How a Van Raam battery works and how to charge it

How a Van Raam battery works and how to charge it

Are you curious about how a Van Raam battery works and how best to charge it? Then watch our video.

Read more
Frequently asked questions about Van Raam batteries

Frequently asked questions about Van Raam batteries

Van Raam's electric bicycles are equipped with lithium-ion (Li-Ion) batteries. In this article Rick de Jonge, electrical engineer at Van Raam, answers some frequently asked questions about these batteries.

Frequently asked questions about the batteries

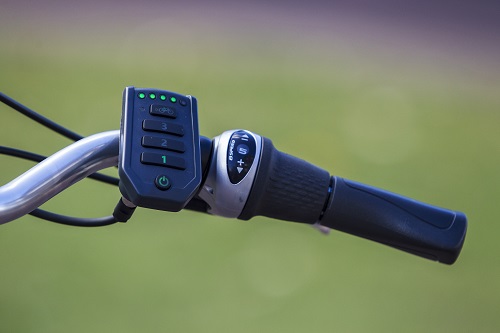

Van Raam pedal support

Pedal support developed by Van Raam

Would you like to know more about the pedal support system developed by Van Raam? Then continue reading on the page: "Pedal support". Read more about the Silent system and the Van Raam app here.

Pedal support

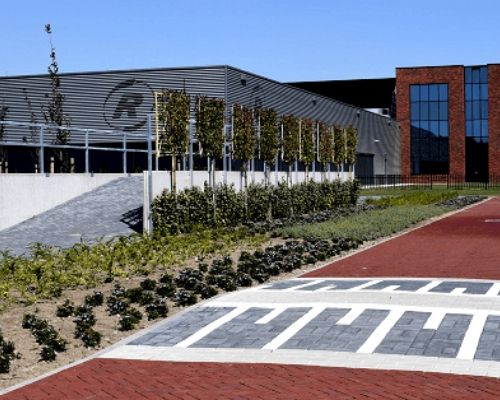

Test ride on Van Raam test track

Try out the Slim battery during a test ride

In our showroom in Varsseveld you can take a test ride and also learn how to place and remove the battery on your bike. A technical adviser will help you choose the bike that suits you best. On our test track it is possible to do test rides on different surfaces and practice real traffic situations. Afterwards, you will receive a quotation that you can take to a Van Raam dealer without obligation to order your special bike this way.

Find a dealer

Do you have questions?

Do you have any questions or would you like more information about the Van Raam Slim battery, how to attach and remove the battery from a Van Raam bicycle? We will be happy to help you, and answer your questions and give you more information about special bikes.
