How to attach and remove a Van Raam Cube battery easily on a custom bike can be read in this instructional article with video. Also read a few handy tips on how to see if the battery fits well on your bike.
A Cube battery can be found on electric tricycles, side-by-side tandems and tricycle tandems. Watch how to attach and remove the battery from the bike in the following video.
Tip: This video is spoken, turn on subtitles for accompanying text and explanations.

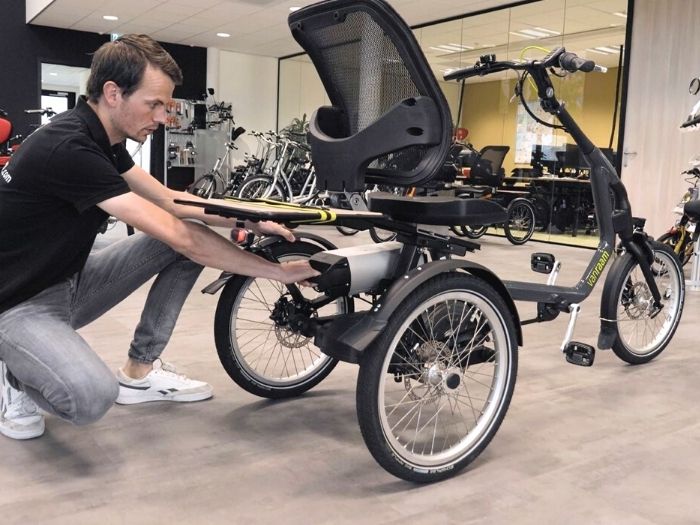

To attach the Cube battery pack to a Van Raam bike, follow the steps below:
Hold the battery pack securely with both hands!
Slide the battery (always) straight into the holder and never at an angle.
Take the key from the battery and turn it halfway.
For an Easy Rider: Connect the cable of the external charging point to the battery.
Use a little force when sliding the battery into the holder to ensure that the connector fits securely. You can pull on the battery handle to make sure the battery is properly attached.Â
Â
Another tip is to turn on the display after placing the battery. If the battery is in the right place, it will switch on and the automatic lighting will also switch on.
After you have switched off the bike's display, you can remove the battery from the bike.

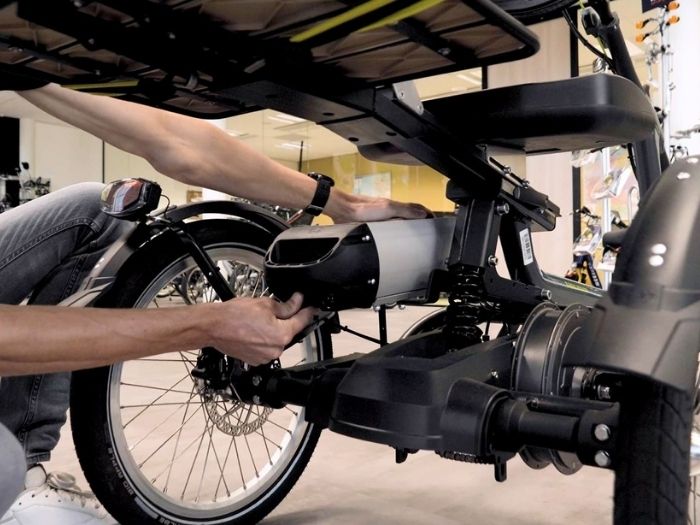

Follow the steps below to do this:
Remove the cable from the external charging point from the battery.
Unlock the battery by turning it open with the key.
Then press the lock.
Push the battery back slightly - this makes removing the battery easier.
At the same time, pull the battery out of the holder with the other hand.
Attention! Hold the battery firmly with both hands.
With the Cube easy release, you can easily remove the Cube battery. Thanks to this convenient option, you can press the release button with less force. Learn more about the Cube easy release on the options page.

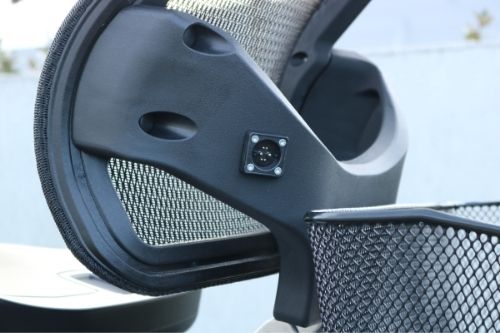

As seen in the video, the electric tricycle Easy Rider has an external charging point. Read the article 'Video external charging point at electric tricycle Easy Rider' to see how it works.
Van Raam's electric bicycles are equipped with lithium-ion (Li-ion) batteries. In this article Rick de Jonge, electrical engineer at Van Raam, answers some frequently asked questions about these batteries.
Are you curious about how a Van Raam battery works and how best to charge it? Then watch our video in the article 'How does a Van Raam battery work and how to charge it?'.
Would you like to know more about the pedal support system developed by Van Raam? Then continue reading on the page: 'Pedal support'. Here you can read more about the Silent system and the Van Raam app.

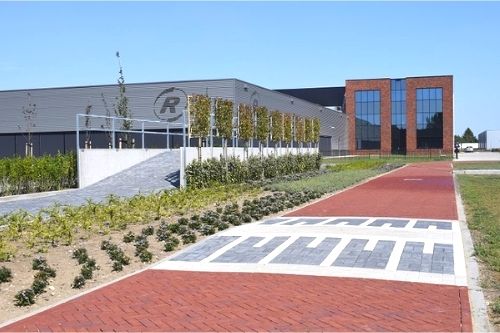

In our showroom in Varsseveld you can take a test ride and also learn how to place and remove the battery on your bike. Atechnical adviser will help you choose the bike that suits you best. On our test track it is possible to do test rides on different surfaces and practice real traffic situations. Afterwards, you will receive a quotation that you can take to a Van Raam dealer without obligation to order your special bike this way.
Learn in this video with instruction article how you can easily attach a Van Raam Slim battery to a special bike and also remove it again. Also read some handy tips on how to see if the battery fits well on your bike.
Are you interested in an adapted Van Raam bike with pedal support or do you already have a Van Raam bike with pedal support and wonder how to remove your battery from the bike, charge it and reconnect it to the bike? Then read on, through our video and article we will show you what types of batteries are available and how to attach and detach the batteries from the bike. Furthermore, we also explain how to charge a Van Raam battery.
The battery of the Easy Rider Compact is placed perpendicular to the bike, unlike other bikes from Van Raam. Read in this article how to attach and remove the battery on the bike.
Van Raam's electric bicycles are equipped with Lithium Ion (Li-ion) batteries. In this article Rick de Jonge, electrical engineer at Van Raam, answers some frequently asked questions about these batteries.
