Video Chat rickshaw bike with protection screen

Step by step instructions for mounting the protection screen

Step 1:

Lower the footplate and remove the cushion from the seat. By loosening all the push buttons of the cushion.

Step 2:

The opening next to the belts is now accessible. There is a small luggage compartment at the rear of the bench seat. On the underside of this compartment is an opening that leads to the front of the bench seat. Push the rubber band and hook through here so that the hook comes out at the front of the seat.

Step 3:

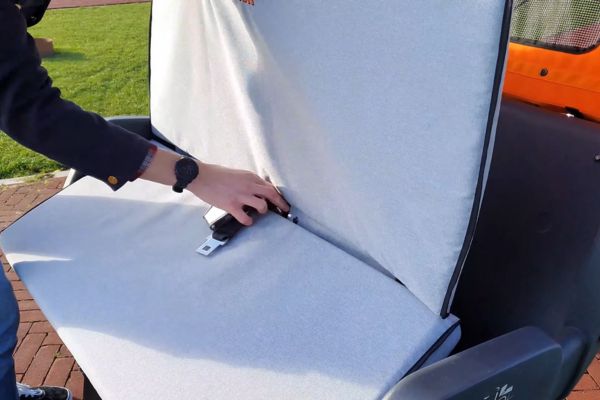

Place the cushion back on the bench. Pull the elastic and straps through the opening in the center of the cushion. Then hook the cord into the eyelet of the screen.

Step 4:

Attach the rubber band to the back of the seat on the steering tube. Use the attachment clip to form a loop to adjust the tension on the cord.

Step  5:

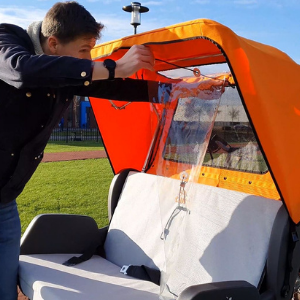

Now attach the protection screen to the top of the hood.
Pass the cord under the frame on the back of the hood and attach the hook to the eyelet.


Step 6:

Repeat step 5 on the front of the canopy. Then attach the cord to the eyelet.

Step 7:

Open some push buttons to fit the cable through and pull the cord along behind the head tube.

Step 8:

Hook the end of the tape into the eyelet. The length of the band can be adjusted using the retaining clip. The rubber band can then be attached to the eyelet on the horizontal tube that is now visible.

Step 9:

Hook the end of the cord into the eyelet. The length of the band can be adjusted using the retaining clip.

Please also read the PDF assembly instructions.

Assembly instructions

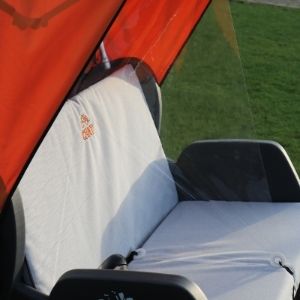

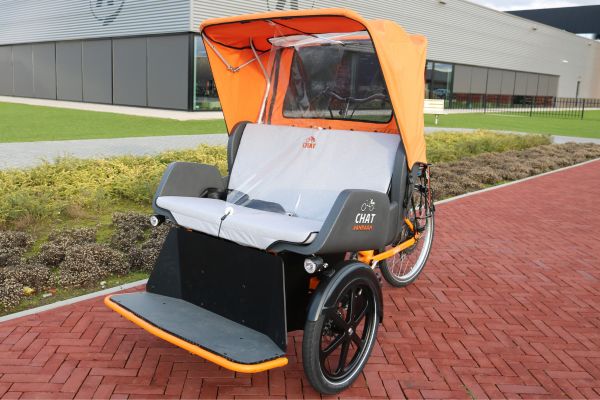

Safe and sociable cycling with physical barrier

Through the protection screen persons can cycle again and continue on the Chat together without (possibly) infecting the other person.

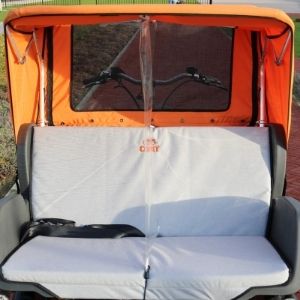

The protection screen is made of a polyurethaan foil and is completely transparent. The shielding is therefore not only safer in terms of corona measures, but also safer because it not deprived of vision.

Everyone can still see the surroundings and each other and talk to each other "as usual" and also see. By developing protection screen, Chat users can still go out and take a bike ride together during Corona time.


Available at your dealer

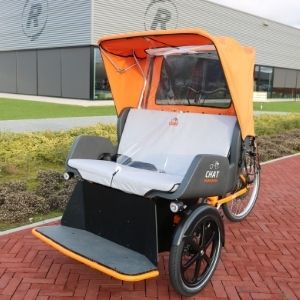

The protection screen for the Chat rickshaw bike can be ordered at Van Raam dealers while stocks last. The protection screen can be mounted on all Chat bikes. Click the button below to find a dealer near you!
