How do I divide the Van Raam Easy Rider tricycle? - Video

With the option of the divisible frame, you can divide the Van Raam Easy Rider tricycle for adults. This allows you to store and transport the bike in a space-saving way. See how you can divide the Easy Rider in this article with instruction video.

Video: How to divide the Easy Rider adult tricycle?

Watch the video below to see how you can easily share the Van Raam Easy Rider adult tricycle with a divisible frame.

Advantages of the Easy Rider tricycle for adults

Read about the advantages of the (divisible) Easy Rider tricycle below.

  • The bicycle can be transported in a space-saving way
  • The bike can be stored in a more space-saving way due to the separable frame
  • Many different adjustment possibilities for the seat
  • Stable road holding and excellent seating comfort with side supports
  • Comfortable seat with tailbone relief and adjustable backrest
  • Pedal support possible (Smart E-Bike)
  • The cables run through the frame and are therefore well protected

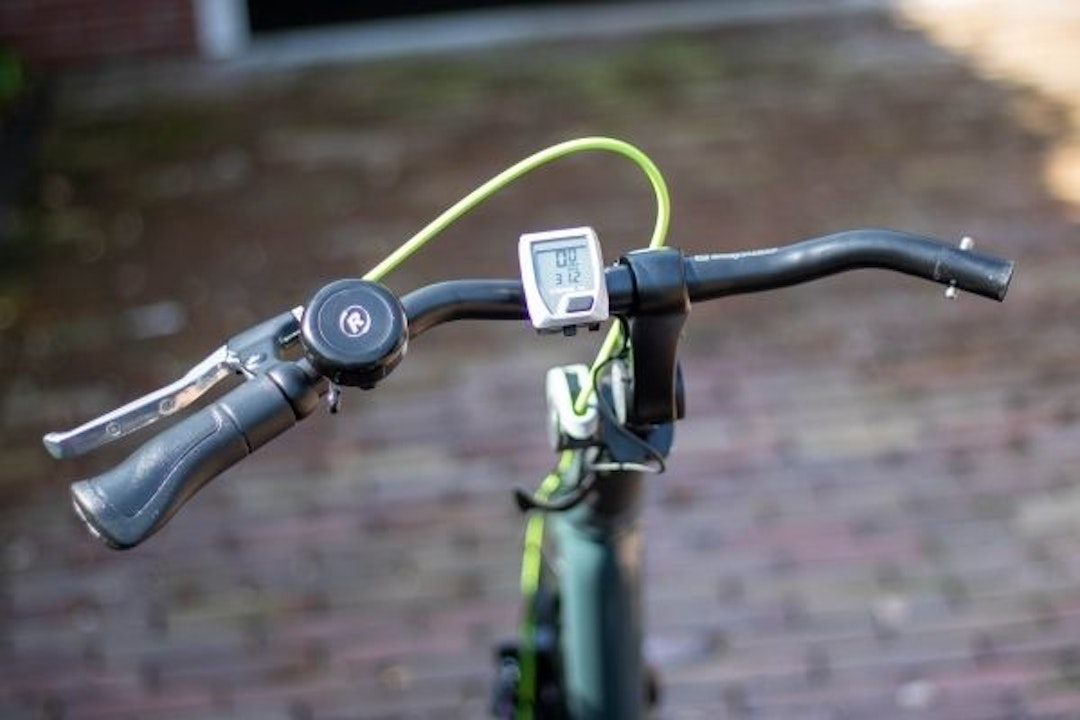

Easy Rider adult tricycle share Remove the handle from the handlebars
Remove the handle from the handlebar.

This is how you divide the Easy Rider with divisible frame

Follow these steps to divide the frame.

1. Turn off the pedal assist.

2. Open the velcro straps of the cables and then unplug the connector plug of the lights from each other.

3. Remove the handle from the handlebars. Press on the balls of the spring to pull the handlebar outwards. Place this handle on the seat or luggage rack.

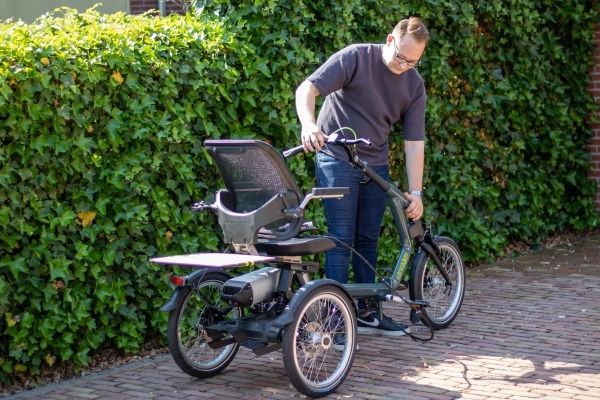

Divide Easy Rider Tricycle for adults
Support the front of the bike by holding the steering tube.

Tip: Make sure that the pedals are horizontal so that they do not point downwards and upwards and do not get in the way of the support point.

4. Turn the star knob until it does not turn any further. Please note! Do not push the star knob down yet.

5. Support the front of the bike by holding the steering tube, and slightly pull the front upwards.

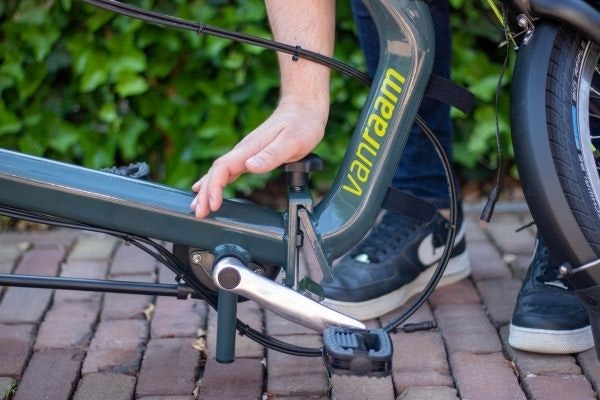

Divide Easy Rider Tricycle for Adults Stars Push Knob
Do not press the star knob without supporting the bicycle.


6. With your other hand push on the star knob to disengage the connection. Pleas note! Do not push the star knob without supporting the front of the bike.

7. You can now slowly lower the front of the bike and place it on as soft a surface as possible.

The bicycle is now ready to be stowed or transported.

Tip: Do not put the bike on the parking brake so the front easily rolls forward. Lay down the front of the bike on a soft surface to prevent damage.

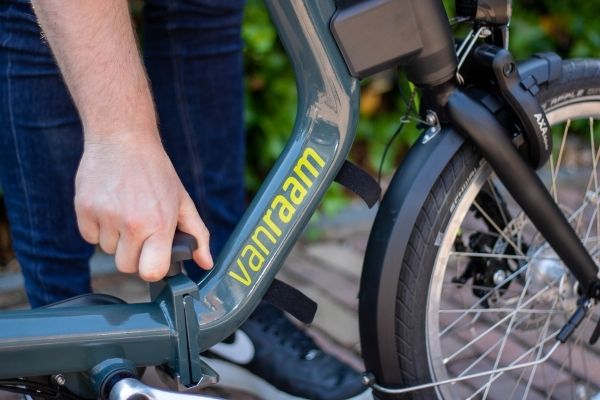

Divide Easy Rider Tricycle for Adults turn Stars Knob
Make sure that the connection is correct.

Reassemble the Easy Rider tricycle

Follow the steps below to reassemble the two parts of the bike:
Tip: Do not apply the bike's parking brake, this will make it easier.

1. Make sure the star knob is completely turned loose.

2. Clamp the front of the bike into the frame connection.

3. Lift the front of the bike to connect the bike (leverage effect).

4. Tighten the connection by turning the star knob. Slightly lift the front of the bike to make sure the connection is flush.

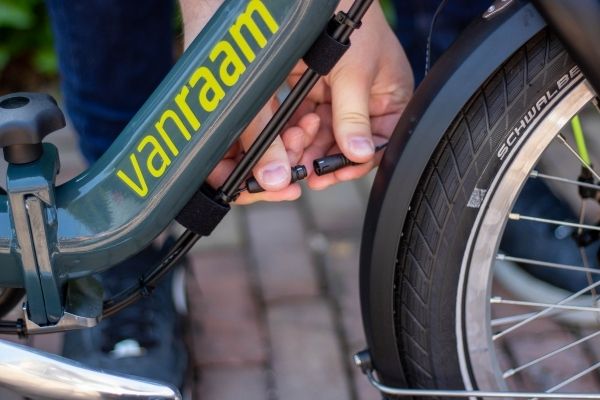

Easy Rider tricycle for adults connector
The two white lines must be aligned.

5. You can now put the handle back on the handlebar.Connect the connector of the lights and make sure that the two white lines are lined up with each other.

6. Finally, you can now fasten the cables with the Velcro straps.

You can now use the Easy Rider tricycle for adults and ride your bike.

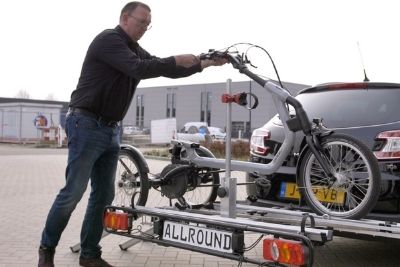

Removing and transporting the Easy Rider tricycle seat

Another tip for an easy transport of the Easy Rider

Did you know that? You can remove the seat of any Easy Rider 3 tricycle to make it easier to transport the bike with a bike carrier. Read more about this in our article: Video detach Easy Rider tricycle seat and transport

View video

Can I add the option to my bike after I have purchased it?

No, it is not possible to add a divisible frame to the bicycle later on. This is because this is a frame customisation.

Configure your Easy Rider tricycle yourself

Simply configure your Easy Rider with the online configurator. There you can see directly which other options are available for the Easy Rider as well as the divisible version. You can also see the price of the options. Would you like to know what is available for your Easy Rider? Click on the button below to go to the configurator.

Configure Easy Rider

Do you have any questions?

Do you have any questions about the Easy Rider tricycle for adults or the divisible frame? Please feel free to contact us. We will be happy to help you! You can reach us by phone: +31 (0)315 - 25 73 70, by e-mail: info@vanraam.com, or via the contact form.
