Foot fixation for special needs bikes

At Van Raam we are continuously working on the further development of our custom bikes including the many options and accessories. In order to continue to innovate, Van Raam's Research & Development department, with the help of students from the Innovation Hub Innovar, is always working on design, innovation and improvement. A common option, the foot fixation (and lower leg fixation), is completely renewed!

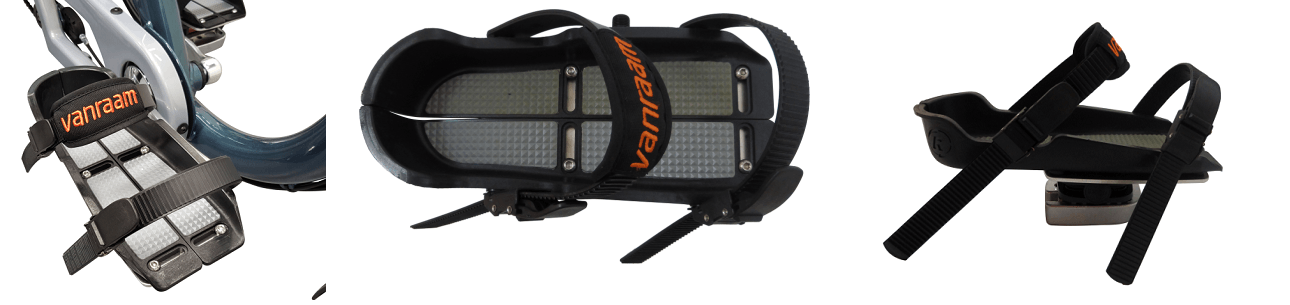

Foot fixations

Foot fixations (supports) are mounted on the pedals and serve as additional support whereby the foot refrains from slipping off the pedal during paralysis or spasms. The fixation is delivered with a balance weight to ensure horizontal alignment at all times

Foot fixations at Van Raam

  • Appealing design.
  • Foot supports are equipped with an inner anti-slip surface for additional grip.
  • Position of the foot support is adjustable, allowing you to pedal with maximum force using the ball of your foot.
  • The rider has an optimum amount of push thanks to the anti-slip surface and support adjustability in relation to the pedal.
  • Width of the foot support is adjustable, making it compatible with different types of footwear. Van Raam offers two sizes of foot support: the Fix 20 for shoe sizes 22-36 with a minimum shoe width of 6,5 cm and a maximum shoe width of 9 cm, and the Fix 25 for shoe sizes 37-48
    with a minimum shoe width of 8,5 cm and a maximum shoe width of 13 cm. This way, children in a stage of growth are unburdened by not having to continually switch between supports.
  • Padding on the straps ensures an improved distribution of pressure on the instep.
  • The support includes two straps for placing over the foot. The handy quick-release mechanism is perfectly suited for single-handed operation.  .
  1. strap foot fixationThe strap [A] can easily be opened with one hand by using the quick-release mechanism [B], after which the strap can be pulled free.
  2. Place your foot in the support and slide the strap as far as possible through the quick-release mechanism.
  3. The quick-release requires minimum effort for the strap to be set in place. Do this by moving the tab up and down slightly.



Foot fixation for bike
tricycle with foot fixation

Foot fixation information


Shoe size (EUR)   22 - 36   37 - 48
Length of foot fixation (cm)   20   25
Width of foot support (cm)
(measured from narrowest point)
With lower leg fixation on the footrest. 		   6 - 7,5 (adjustable)     7,5 - 9,5 (adjustable)
Width of foot support (cm)
(measured from narrowest point)
Without lower leg fixation on the footrest.		 6 - 7,5 (adjustable) 7,5 - 12,5 (adjustable)
Product reference   FIX 20   FIX 25

Attaching and adjusting the Van Raam foot fixation

Attaching and adjusting the Van Raam foot fixation

If you order an adapted bike with one or two foot fixation(s), this will be fitted by the dealer. In our article and video "Attaching and adjusting the Van Raam foot fixation" you can find out how to attach and remove a foot fixation from a Van Raam bike and what sizes are available. This can also be handy to know if you want to transport your bicycle. Also, see how the width can be adjusted to your foot size.

Watch the video

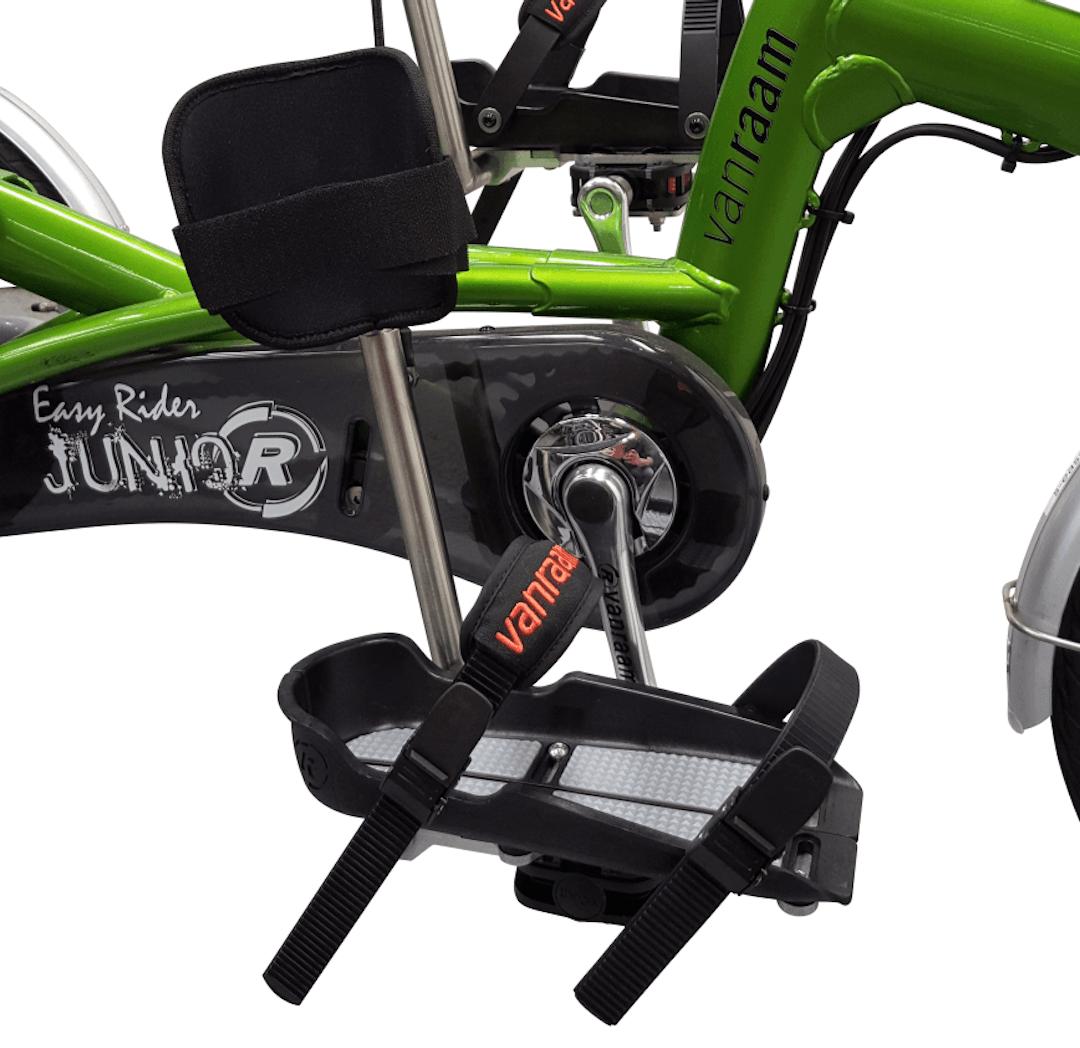

Lower-leg fixation

Bear in mind that this is only available together with the foot support. For more information about the lower-leg fixation, read the points below:
  • Adjustable height allowing proper alignment with the rider’s lower-leg.
  • Leg padding for support purposes is rounded, preventing unnecessary pressure on the leg.
  • Angle of the leg padding is adjustable and can be moved from the side of the leg to the front or back.
  • Velcro is used to secure the lower-leg fixation to the leg.
  • Available in two sizes, the larger of which (FIX 25) has the added benefit of pivot hinges, stimulating ankle joint movement. As a result, pressure to the shin is reduced.

lower-leg fixation

User experience with foot fixations

Van Raam receives a lot of positive feedback from end users every day. We would like to share this with you in order to show you what is possible again when you can (again) safely ride a bicycle with the help of a special bicycle. Read the following experiences of bicycle users who also have footrests or lower leg fixings.

Easy Rider tricycle

"My boyfriend and I both have an Easy Rider tricycle. We enjoy participating in organized bike rides."

Brigitte van der Laan - Spijk (GN)

Read more

Easy Rider tricycle

"I have been using an Easy Rider tricycle with seat since November 2017. Because of my illness Multiple Sclerosis (MS). I can unfortunately no longer ride on a regular two-wheel bike."

Thea Westra - Stiens

Read more

Husky tricycle

"With the Husky tricycle, David, our youngest son with a light CP, could participate this weekend with the bicycle parade in the neighborhood. Participating is so important!"

Paula (mother of David) - Leeuwarden

Read more

Mini tricycle

"Although Duncan is in a wheelchair, he is just as happy as his peers and wants to be part of it as much as any other child. That's why he has a Mini tricycle."

Mother of Duncan - Gorinchem

Read more

Twinny Plus tandem

"Since April 2018 we are in possession of a Twinny Plus three-wheel tandem with divisable frame. We bought this bike so that we are able to cycle with our son Lucas."

Madelon Boots - De Hoef, Utrecht

Read more
