How do you adjust the length of a Van Raam recumbent trike?

The lengths of the Van Raam Easy Sport and Easy Sport Small recumbent trikes are adjustable. This allows you to properly adjust the bike to your posture and needs. Read in the article how to adjust the bike frame to the correct length.

Video: Adjust the right length on the Van Raam Easy Sport and Easy Sport Small

When purchasing a new Van Raam recumbent tricycle, the Van Raam dealer sets the bike to the customer's height. If you would like to adjust the bike afterwards, you can follow the steps in this article and the video below. If you cannot adjust your Easy Sport or Easy Sport Small yourself, please contact your Van Raam dealer.

Adjust the right length on the Van Raam Easy Sport and Easy Sport Small recumbent trikes

Adjusting the length of the recumbent tricycle

To determine the correct length of the Easy Sport and Easy Sport Small recumbent tricycle, the rider sits on the tricycle with one foot on the pedal in the outermost position. Adjust the sitting position so that your leg is stretched but still relaxed. You determine the most comfortable position in practice. The seating position is set by adjusting the frame length to the correct distance. To do this, follow these steps:

Bike frame step-by-step adjustment

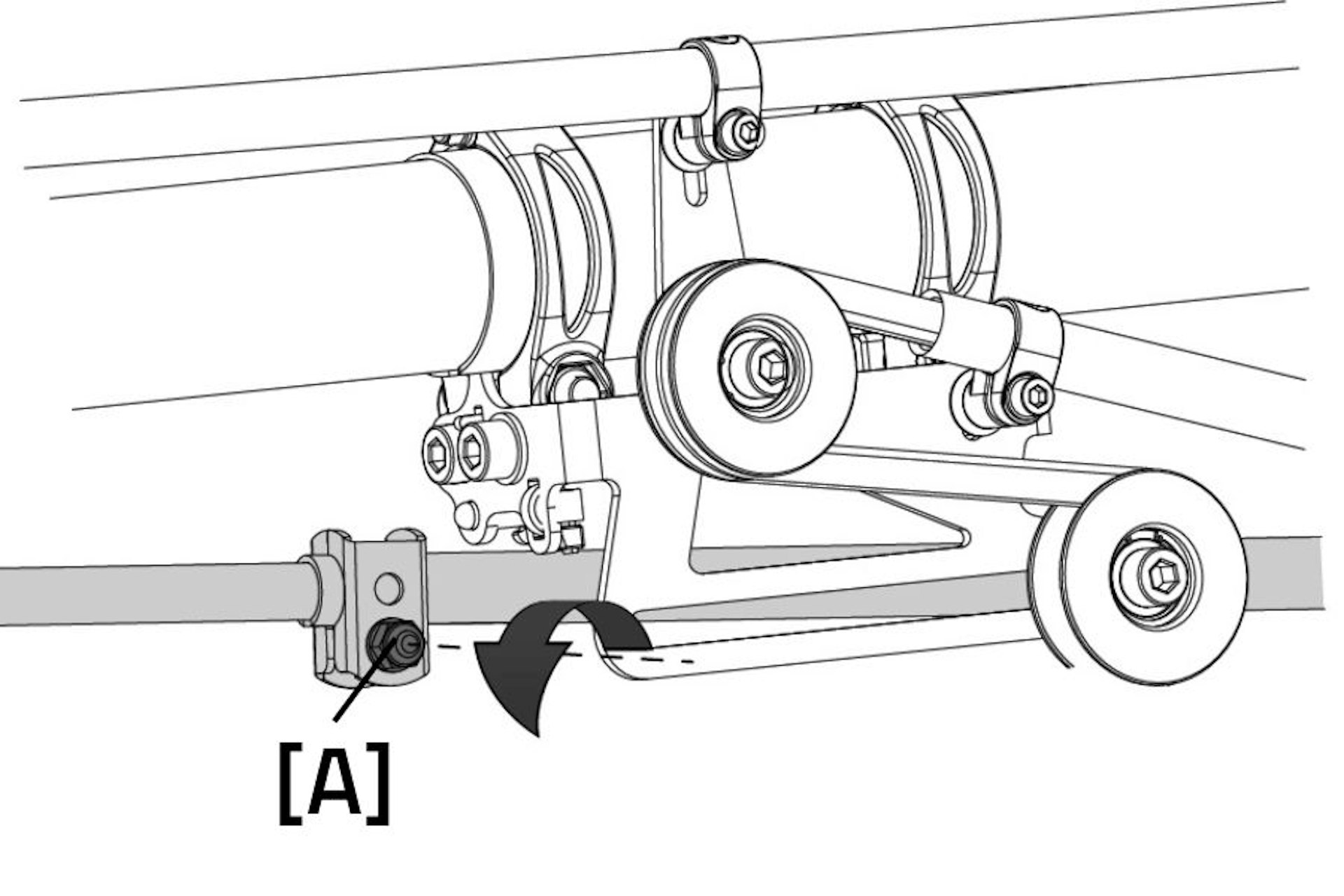

Adjust the right length the Van Raam Easy Sport and Easy Sport Small recumbent trikes loosen up bolt steering rod

1. Use a spanner to loosen up the bolt of the steering rod [A].

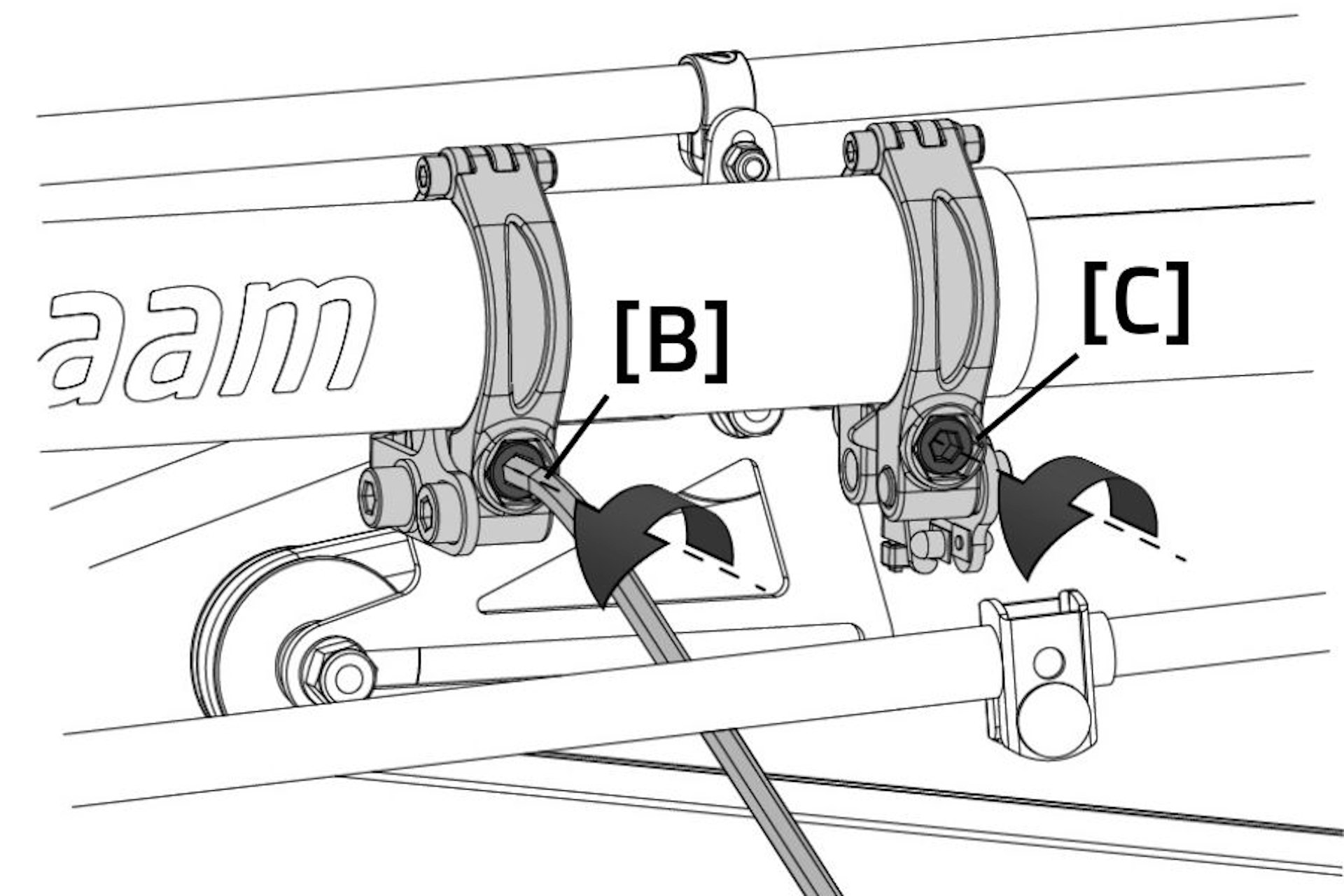

Adjust the right length the Van Raam Easy Sport and Easy Sport Small recumbent trikes loosen up bolts frame clips

2. Use an hex key to loosen up the two bolts of the frame clips [B] and [C].

3. Move the front of the frame and set it to the desired length. Caution! The frame may not be extended further than the marking on the inner tube [F].

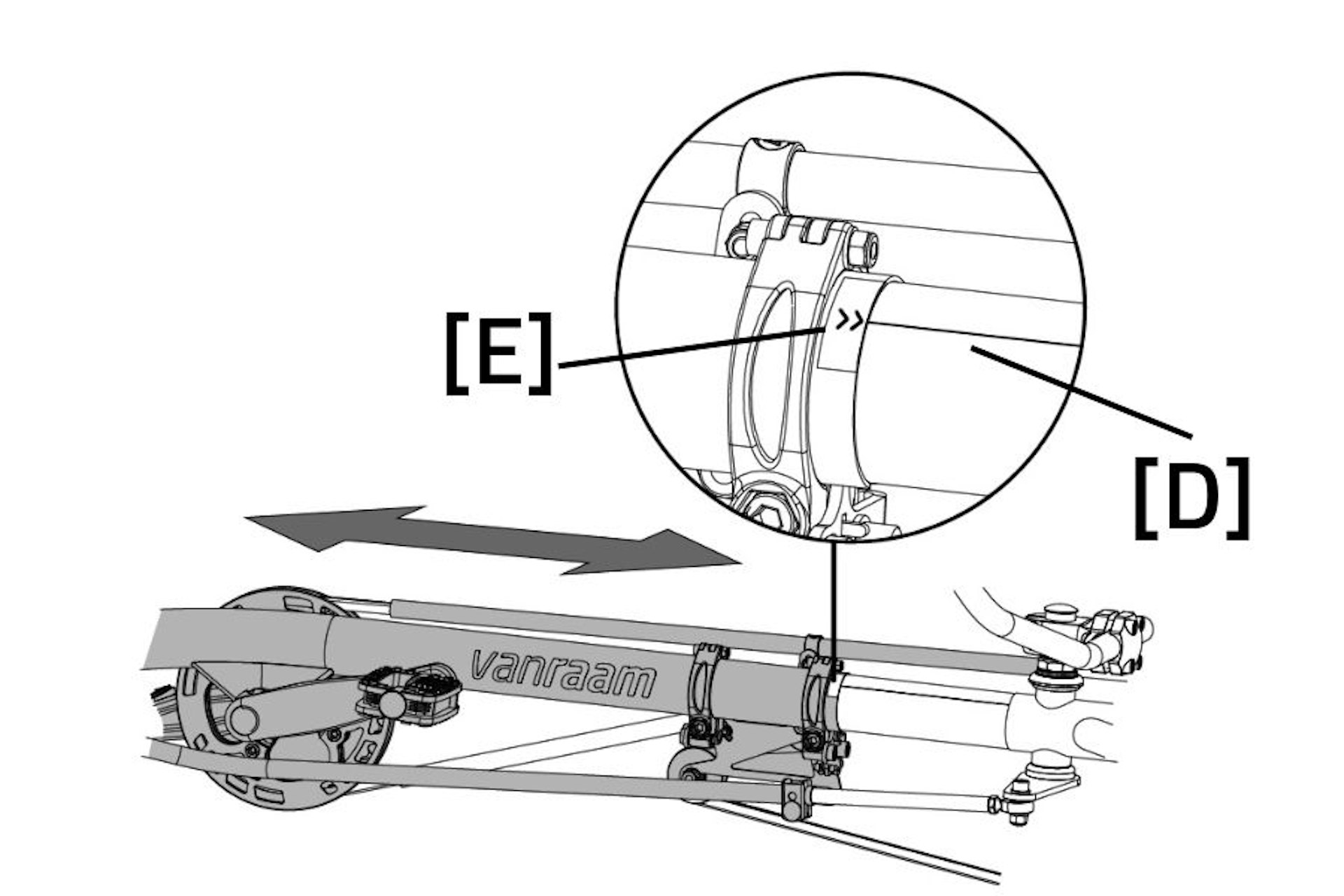

Adjust the right length the Van Raam Easy Sport and Easy Sport Small recumbent trikes inner tube alligning

4. Make sure that the line on the inner tube [D] aligns with the position of the sticker marker [E].

5. Now using a hex key tighten the two bolts on the frame clips [B and C].

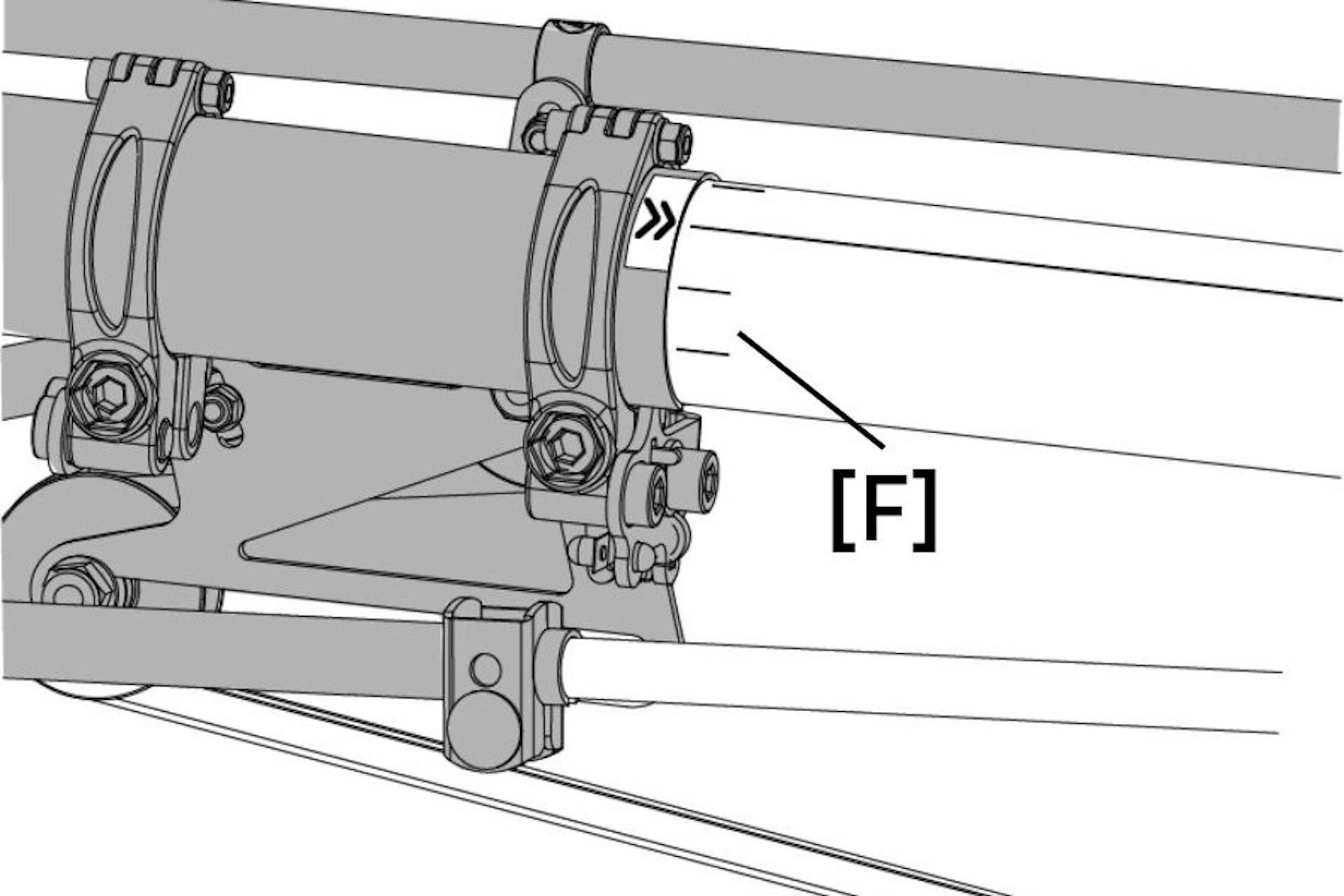

Adjust the right length the Van Raam Easy Sport and Easy Sport Small recumbent trikes frame not further than the line

6. Put the front wheel in a straight position and use a spanner to tighten the bolt of the steering rod [A].

Make sure that the front frame is not extended beyond the mark [F]. Otherwise, the inner tube will not protrude deep enough into the frame. While clamping the frame tube, the frame clamps must be tightened at least 1 cm from the tube end. A good indication of this is when the marking sticker [E] is fully visible.

Chain tension of the recumbent tricycle

The standard Van Raam recumbent tricycle is equipped with a derailleur. This ensures that after adjusting the length of the bike, the chain does not need to be re-tensioned. However, the range of this is limited. If more chain length is needed to properly position the derailleur, or more adjustment range is needed, adjust the chain tensioner roller for this or have the chain lengthened. Read more about this in the manual of the respective bike. The manual can be found on the product page of the Easy Sport or Easy Sport Small.
