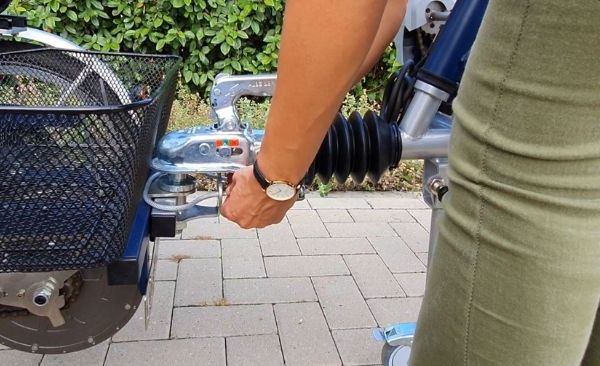

To detach, push in the bolt on the lever.
Step by step: Detaching the FunTrain

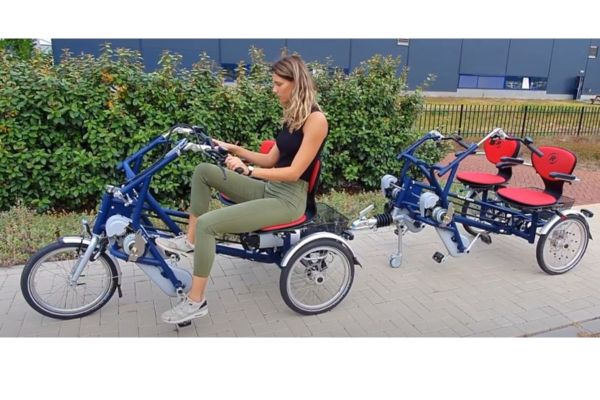

When you have finished your bike tour and the passengers have left the bike, you can disconnect the FunTrain from the Fun2Go. Read the following step-by-step instructions on how to do this.
Step 1:
Lock the
parking brake on the
Fun2Go.
Step 2:
Unlock the
fixing bolt of the support wheel by pulling it out.
Step 3:
Then fold the support wheel down until the fixing bolt locks again with an
audible click.
Step 4:
Undo the tear rope so that it is
no longer hooked under the bracket.
Step 5:

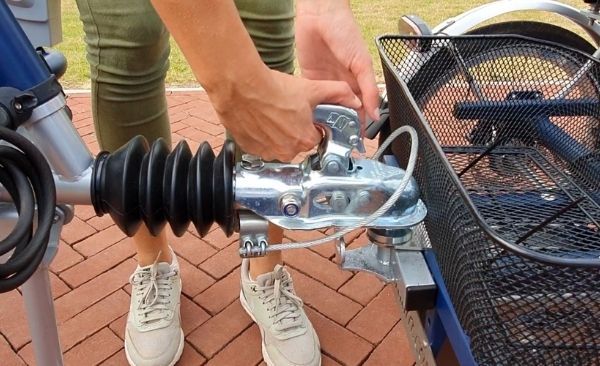

Pull the lever up and then lift the ball
coupling from the pulling ball. To do this,
press on the latch on the lever.
Step 6:
Make sure that the tear rope is also pulled
over the tow ball when detaching.
Step 7:
Tighten the
parking brake of the support wheel.
